High Accuracy Measurement: Utilizes ultrasonic technology to achieve non-intrusive flow detection, with no mechanical wear and tear, ensuring stable and reliable metering results.

Brass Body Construction: The inlet and outlet are made of high-quality brass, which is corrosion-resistant and suitable for various water quality environments.

Intelligent & Waterproof: IP68-level waterproof and dustproof design allows stable operation in humid or harsh conditions. Equipped with a digital display for real-time water consumption reading.

Anti-Tamper Design: Equipped with red sealing clips to prevent unauthorized disassembly and ensure data security.

Compliance & Certifications: Meets national metrology standards (CJ/T 777R.1-2018) and holds model approval certificate (No. 2019F832-37), suitable for global market access.

Customizable Options: Supports OEM/ODM services, including remote reading (M-Bus/RS485/NB-IoT) and prepaid function customization.

Product Description

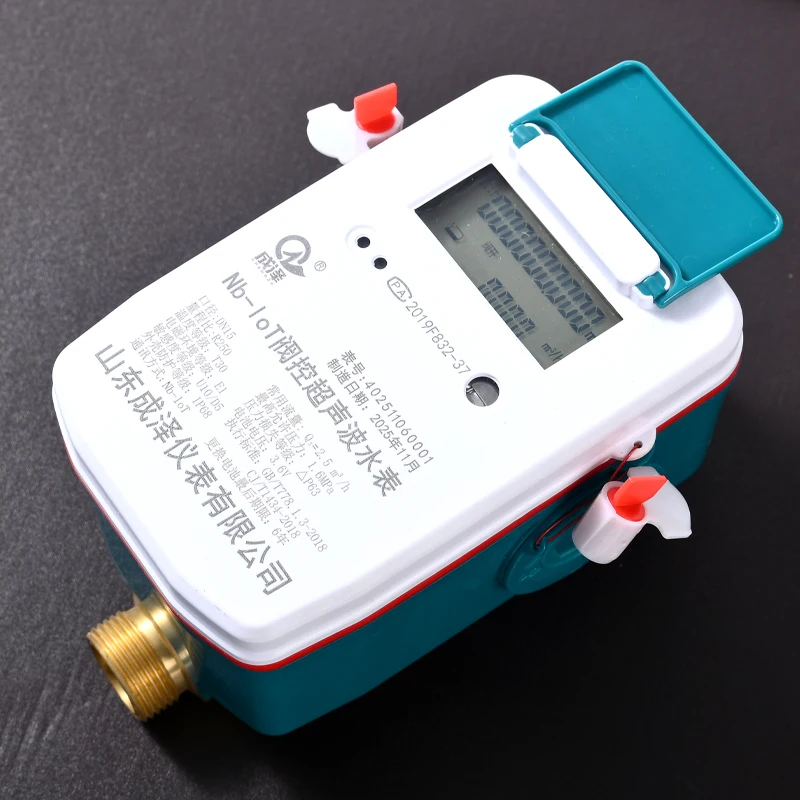

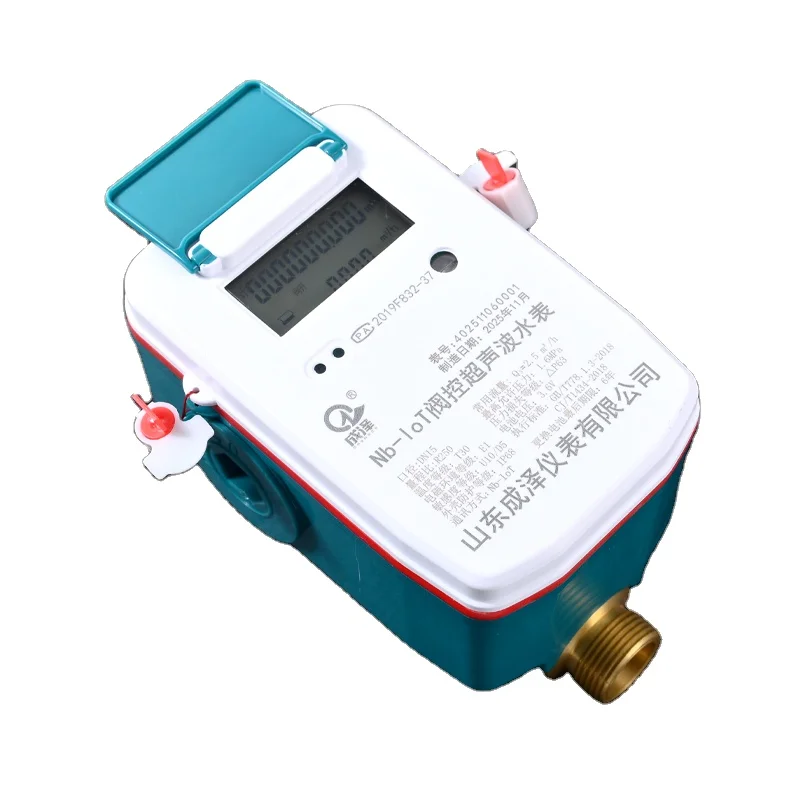

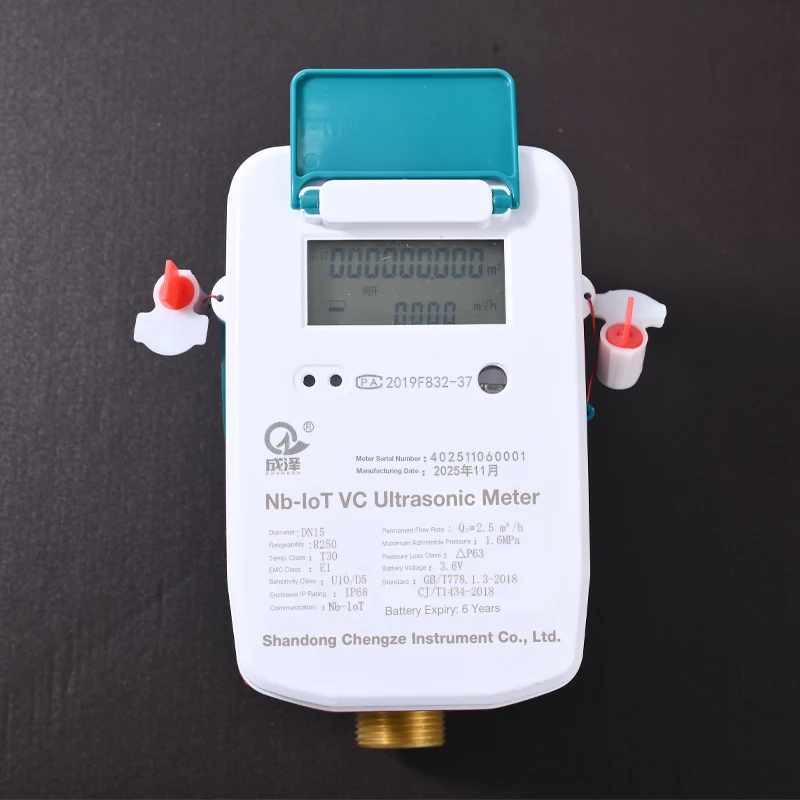

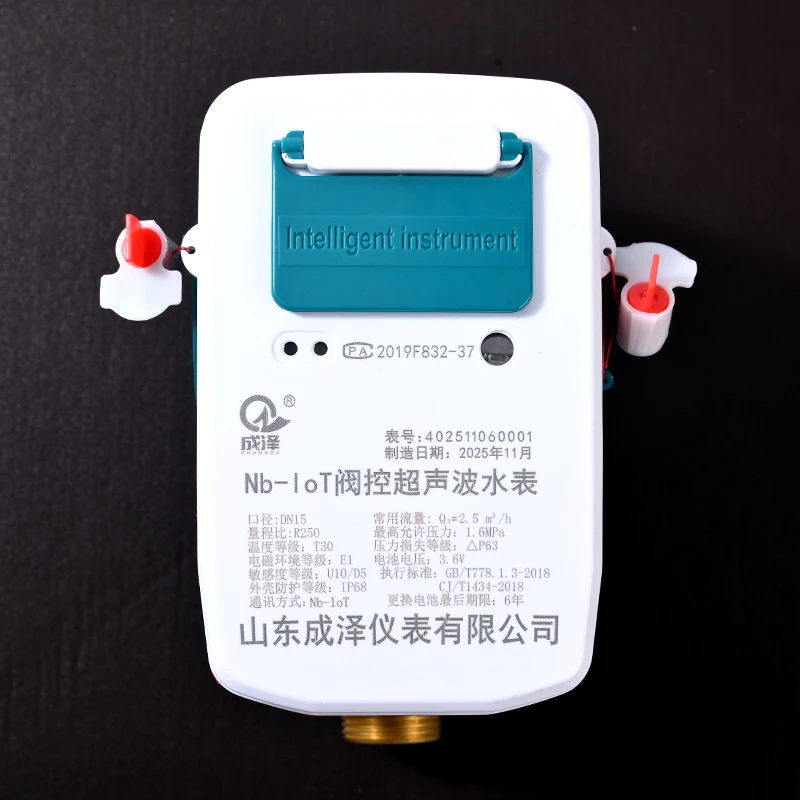

The ultrasonic water meter uses time difference measurement technology, featuring high accuracy, low power consumption, wide measurement range ratio, and stable reliability. This series of water meters addresses issues such as low flow rates not being counted and excessive pressure loss in traditional water meters. It can be widely applied to urban water supply pipelines, individual household water meters, water resource extraction monitoring, and agricultural irrigation. It is also suitable for various industrial sites and is known as an ultrasonic water meter. The basic unit of measurement for this water meter is M3.

Specification

Protection Class	Ip68
Connectivity	Threaded
Flow Rate	2.5m3/h
Measurement Range	0.01-3.125m3/h
brand name	Chengze
customized support	OEM, ODM
material	Copper/Stainless Steel+Plastic
Product name	Ultrasonic Water Meter
Temperature level	0-90℃
Pressure rating	1.0 or 1.6MPA
Pressure loss rating	AP63
Upstream flow sensitivity level	U10
Downstream flow sensitivity level	D5
